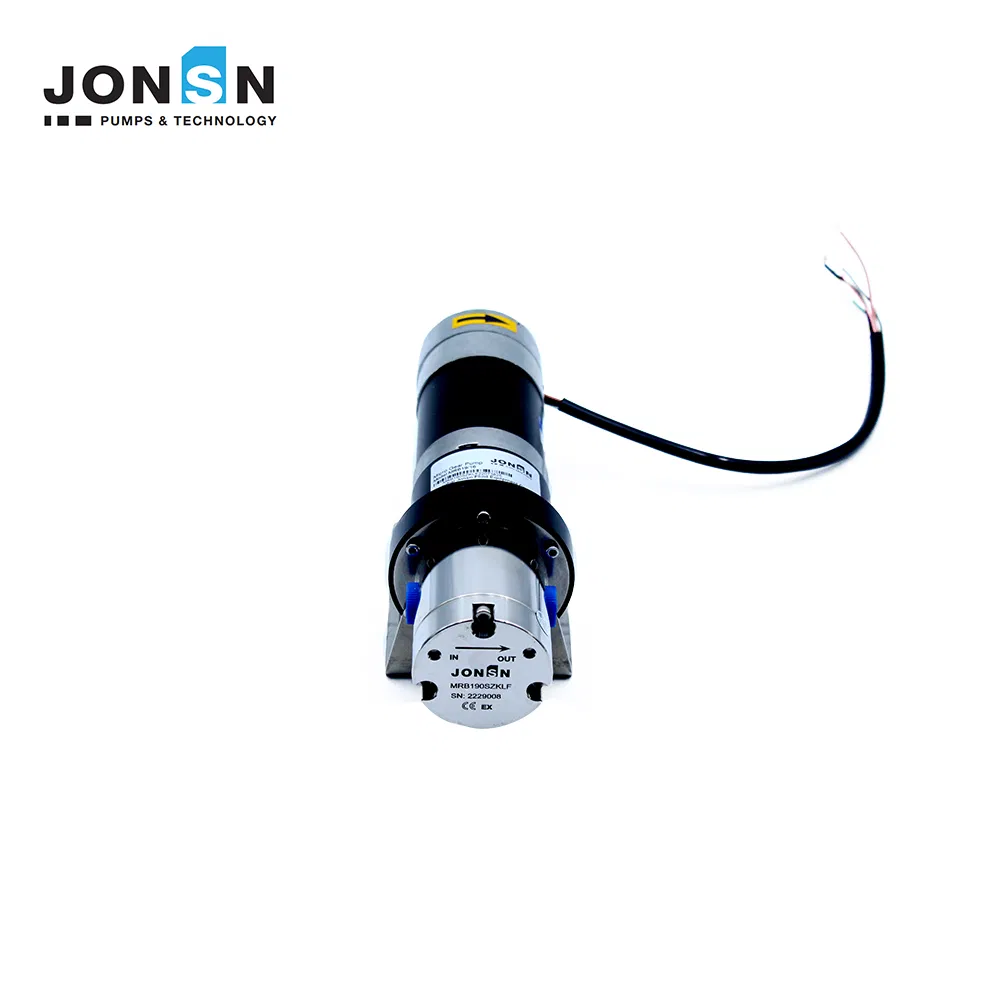

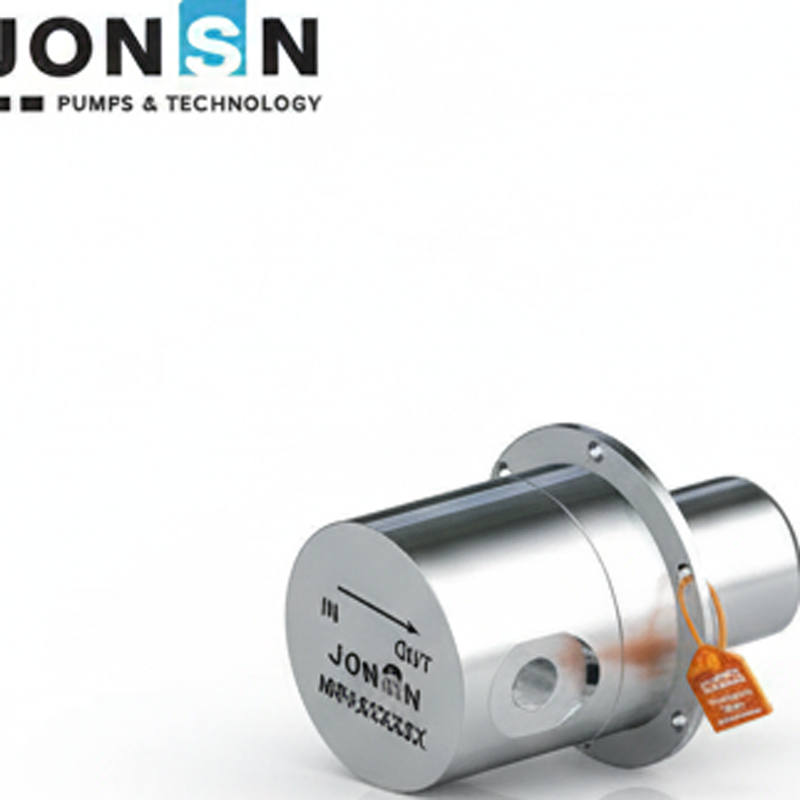

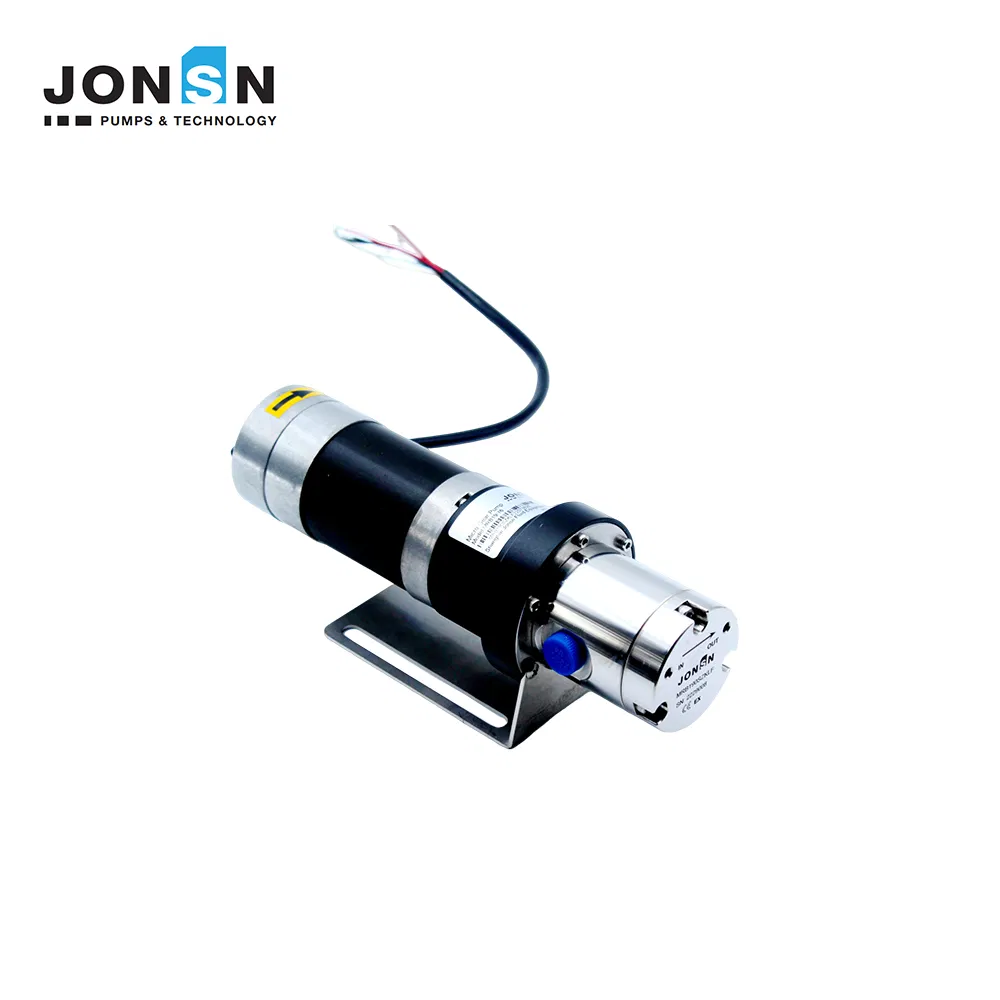

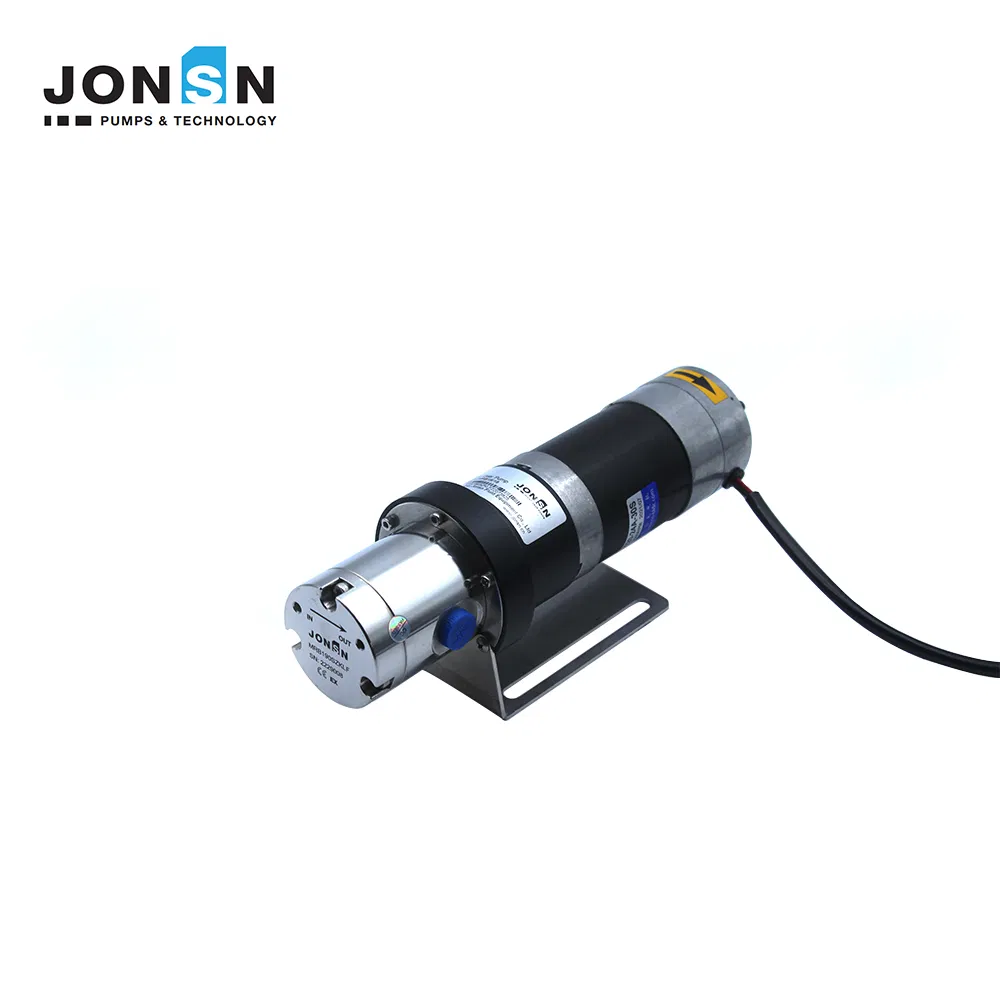

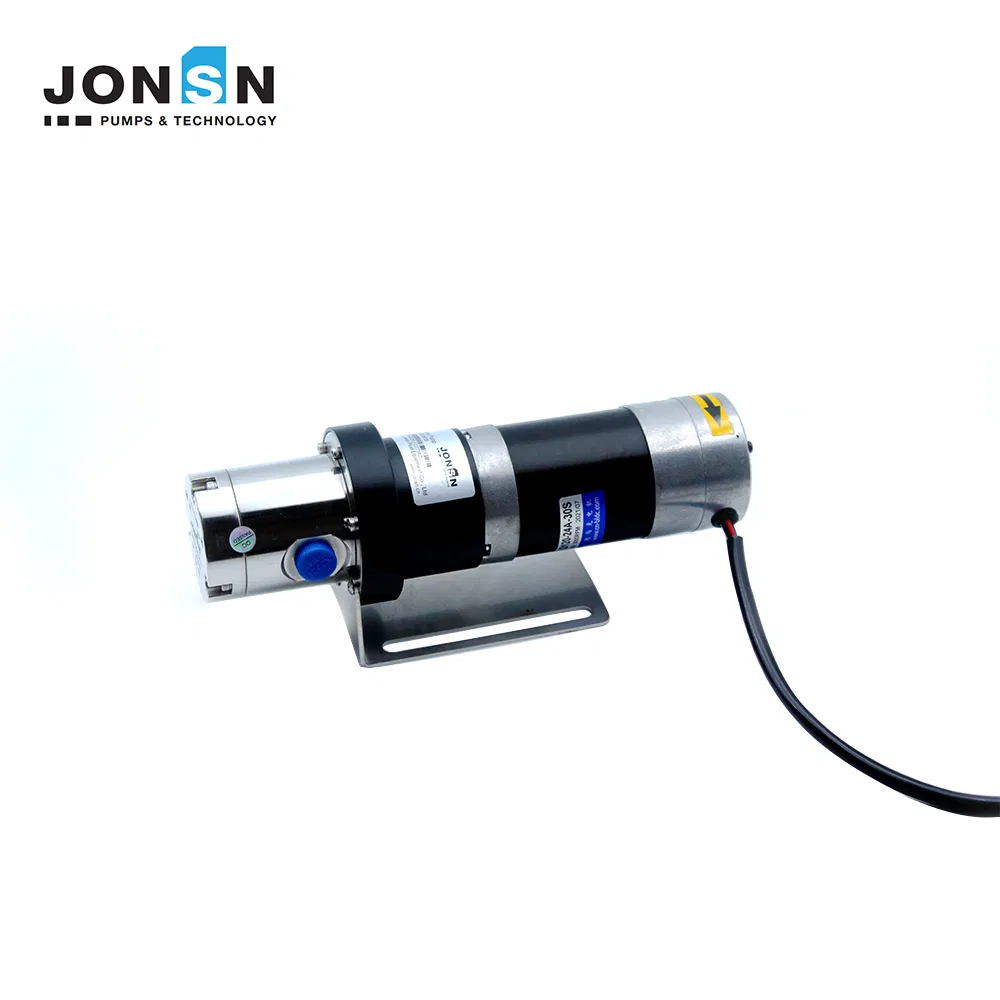

24V DC Sanitary Precision Gear Pump for Dialysate Pump

1 / 5

24V DC Sanitary Precision Gear Pump for Dialysate Pump

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🚀 Basic Information

Model

MRA5/13

Mesh Form

Internal Engaged

Flow Rate

0.15-0.66L/Min

Viscosity

0.4-3000 Cps

Pressure

0-25.5 Bar

Material

SS316L/Alloy C

Gear

Reinforced Peek

Shaft

Nano-Ceramic

Max Temp

-40 to 180 ℃

Certification

CE, ISO, RoHS

📦 Product Description

💡

MRA Series Micro Gear Pump (100ml-2000ml/min): Capable of handling flow rates with a working pressure differential of 0.5-25bar. It is pressure-resistant up to 4 MPa and can be equipped with brushless, AC, stepper/servo, or explosion-proof motors.

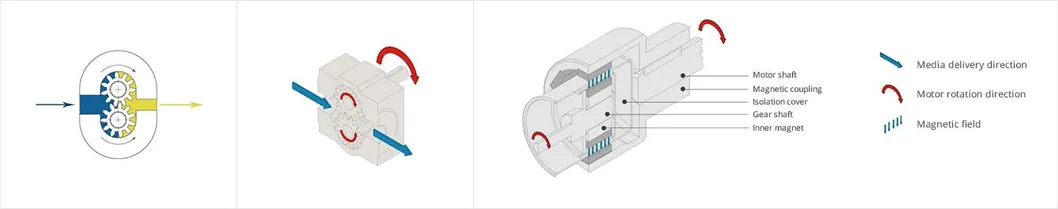

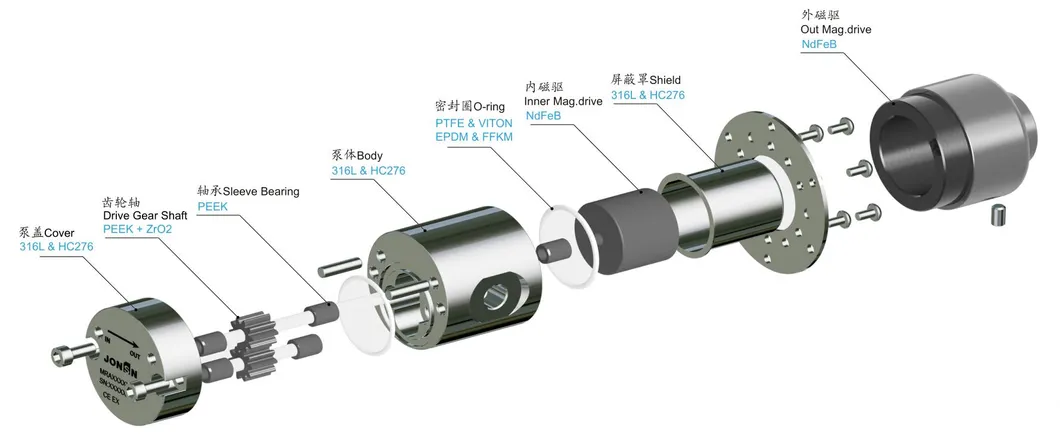

WORKING PRINCIPLE

🛠️ Features & Secure Advantages

Pulsation-free precise conveying: Accuracy can reach +/-0.5% with servo/stepper motors.
Zero leakage: Magnetic drive and static O-ring ensure medium isolation.
High wear-resistance: Reinforced PEEK gears and nano-ceramic shafts.
Wide temperature range: Operates from -120ºC to 180ºC.
Long service life: Exceeds 20,000 hours of operation.

🎯 Applications

📊 Theoretical Flow Rate

Order No.	Size (Inlet)	750 rpm	1450 rpm	2850 rpm	3300 rpm
MRA5/13	1/8	0.150	0.290	0.570	0.660
MRA10/13	1/8	0.450	0.870	1.710	1.980
MRB10/16	1/4	0.750	1.450	2.850	3.300
MRC15/22	3/8	1.800	3.480	6.840	-
MRE34/37	3/4	12.750	24.650	48.450	-

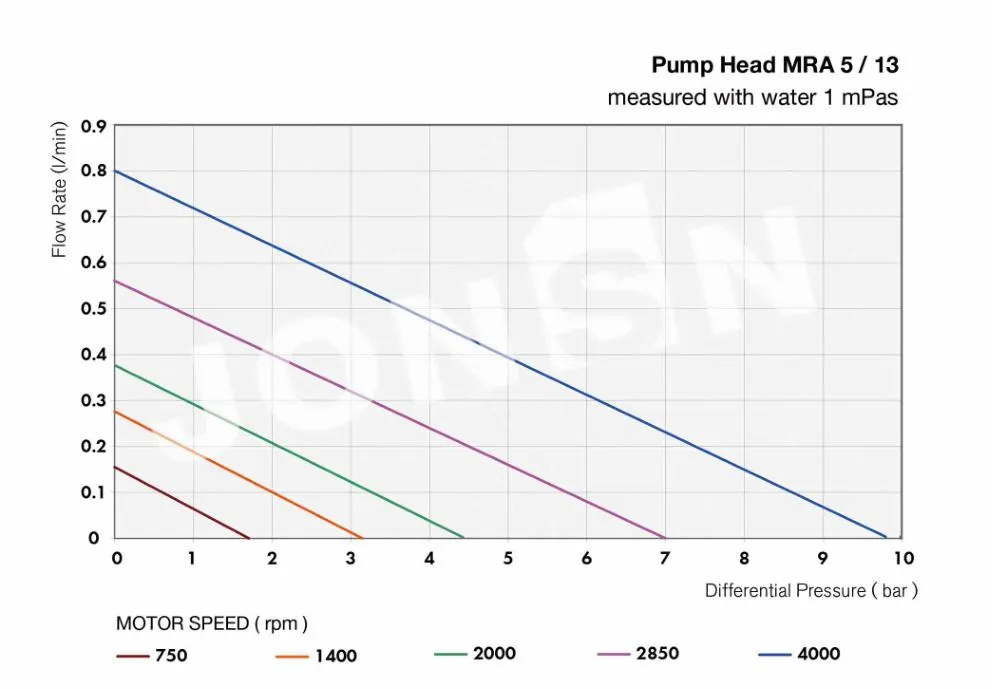

🔍 Performance & Production

❓ Frequently Asked Questions

Q1: What is the typical service life of your gear pump?

The typical service life of our micro gear pump exceeds 25,000 hours, verified through simulations and customer feedback.

Q2: Can the pump be used for metering applications?

Yes, all our pumps are positive displacement pumps. Delivery accuracy can reach +/-0.5% depending on the control system and fluid nature.

Q3: Can these pumps transport liquids containing solid particles?

No, gear pumps cannot transport media with particles. We recommend installing a 25-micron filter at the inlet to protect internal parts.

Q4: What is the temperature and pressure resistance?

Conventional heads handle -20°C to 80°C (customizable from -60°C to 160°C) with a system pressure resistance of 4MPa to 6MPa.

Q5: Is the gear pump self-priming and can it run dry?

Yes, they are self-priming. Our PEEK modified gears have strong dry-wear resistance, though dry running should be minimized to maximize life.

Q6: How do I adjust the flow rate?

The easiest way to adjust the flow is by changing the motor speed, as there is an almost linear relationship between speed and flow.
